Products > Industrial Displays > Flat Touch Monitor > FAD Series

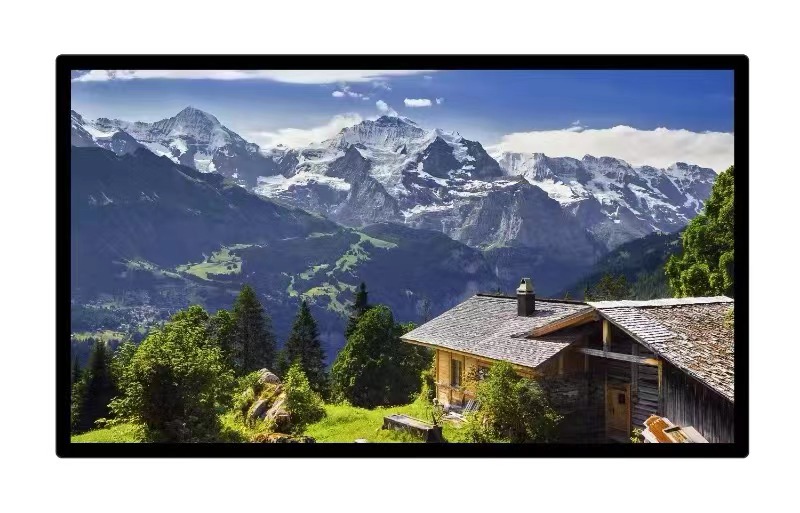

FAD-500PW-DN

Main Features

Features :
* 50" VGA 1920 x 1080 LCD panel with LED backlight
* 0℃~ 50℃range operating temperature
* Multi-touch PCT touchscreen with USB interface
* Flexible signal interface: VGA, DVI, HDMI, AUDIO
* VESA mounting
* True flat surface
* AC 110~220V 50/60hz

File download

Description
Display Resolution              1920 x 1080
LCD Ratio 16 : 9
Active Area (mm)   1095.84 x 616.41 mm
Pixels Pitch (mm) 0.28537 x 0.28537 mm
Brightness (cd/m²) 350 cd/m2
Contrast Ration 4000 : 1(Typ.)
Response Time 9.5 ms
Color Support 16.7M
Viewing Angle 178° (H) / 178°(V)
Back-light LED
Life Time 30000Hours
I/O Port Input VGA+DVI+HDMI+AUDIO
Speakers (Optional) 5W+5W
Touch
(Optional)
PANEL Type Capacitive multi touch screen
Structures G+G
Glass 3mm tempering glass
Interface USB
Power Consumption Power Rating AC 110-220V 50/60hz
Max Power <80W
Accessories Standard Power Cord. HDMI Cable. USB Cable
Packing Box Standard Shipping Box
Operation Temp/Humidity 0~50oC , 20-90%RH
Storage Temp/Humidity -20~60oC , 10-90%RH
