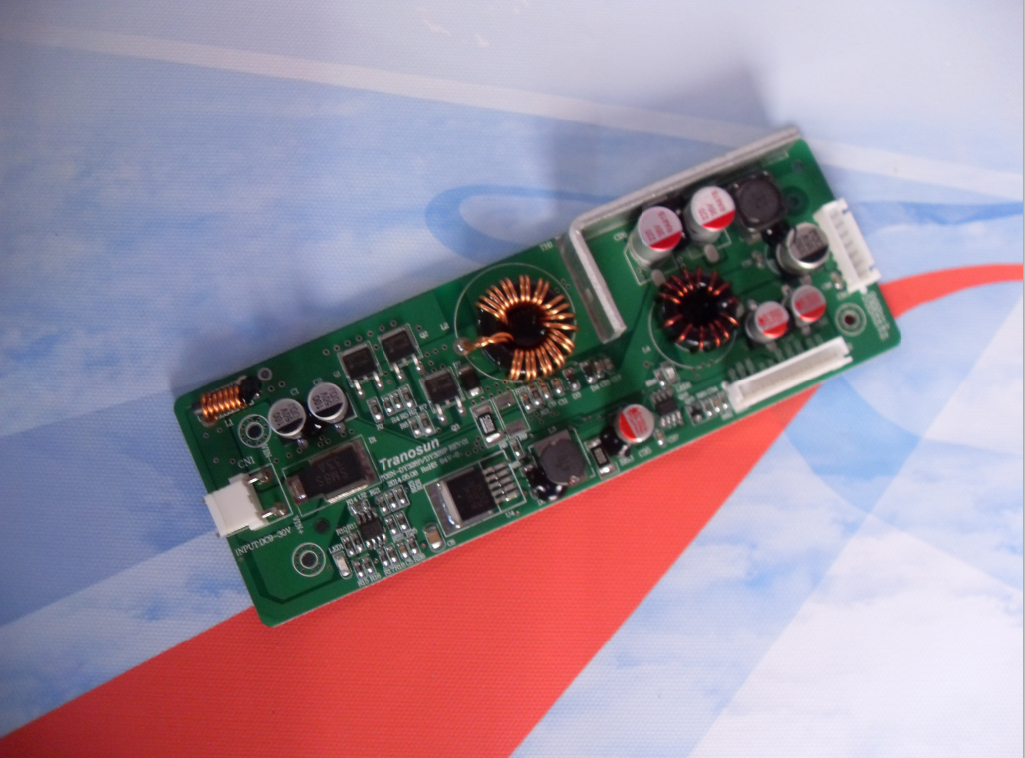

DY328P

Main Features

Working voltage: DC9.5V-30V

Output voltage: 24V 12V + 5V + 5VSB

Output Current: 3.0A 3.0A 1.0A 0.5A
                         (4.0A 4.0A 2.0A 1.0A max)

File download

Description

* Working voltage: DC9.5V-30V

* Output voltage: 24V 12V + 5V + 5VSB

* Output Current: 3.0A 3.0A 1.0A 0.5A (4.0A 4.0A 2.0A 1.0A max)

* When the supply voltage Vin <9.5V, the power supply board guarantees 12V / 24V output delay for 15 seconds, Vin> 9.5V in 15 seconds, the voltage of each group keeps outputting, Vin <9.5V and remains for more than 15 seconds, Board automatically cuts off all outputs (except + 5VSB / + 5V 3A)

* Supply voltage: 50V <Vin> 30V, the power board will immediately disconnect all outputs

* With status indicator: On - means the output is normal, slow flashing - Low voltage indication, flashing fast - Short circuit at output

* Has PS_ON function

* The output has a super 8bit high-speed ADC sampling control output intelligent short circuit protection, short circuit conductor can automatically identify short circuit from 0-30 meters, automatic detection off

* The input has reverse polarity protection

* Output ripple: <100Mv

* Operating temperature: -20 ~ 60 ℃

* Relative humidity: 5 ~ 95% RH

* Safety standards: IEC60950 / IEC60065 / EN50498 / GB4943

* Electromagnetic compatibility standards:

 EN55022 & EN55024 Class B,

IEC-60068-2-1, IEC-60068-2-2, IEC-61000-4-5 (ISO7637-2), Lever 3, IEC-61000-4-11 , Criteria B,

* Dimensions: (L) 160 * (M) 55 * (H) 13mm

* Weight: 110g
