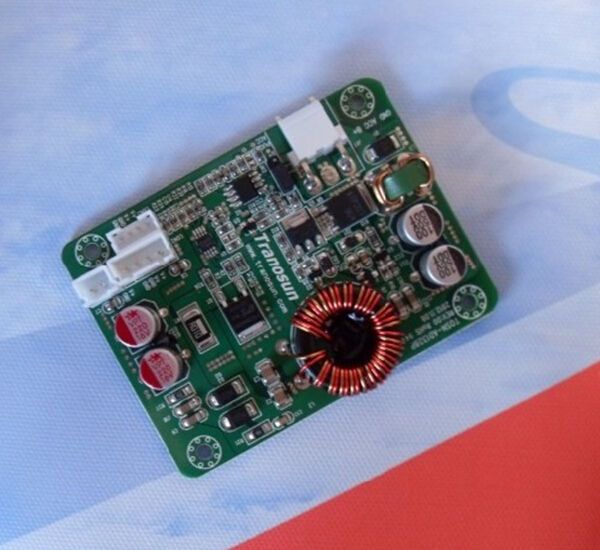

AD1328P

Main Features

File download

Description

* Working voltage: DC 6V-36V

* Output voltage: 12V

* Output Current: 2.5A (3.0A max)

* Enter with ACC control (optional)

* with a delay of 15 seconds boot (open power board output)

* When the supply voltage Vin <6 ± 0.5V, the power supply board guarantees the V-Out output is delayed for 15 seconds, and Vin> 6V in 15 seconds, V-Out continues to output; when Vin <6 ± 0.5V and remains greater than 15 seconds, the power strip automatically cut off the output,

* Supply voltage: 50V 36V, the power board will immediately disconnect all outputs

* output over-voltage protection with over-current

* Super 8bit output with high-speed ADC sampling control output intelligent short circuit protection, short-circuit wire can automatically identify from 0-30 meters short circuit, automatic detection off

* The input has reverse polarity protection (Iin = 0A) function

* Output ripple: <100Mv

* Operating temperature: -20 ~ 60 ℃

* Relative humidity: 5 ~ 95% RH

* Safety standards: IEC60950 / IEC60065 / EN50498 / GB4943

* Electromagnetic compatibility standards:

　EN55022 & EN55024 Class B,

　IEC-60068-2-1, IEC-60068-2-2, IEC-61000-4-5 (ISO7637-2), Lever 3, 　

　IEC-61000-4-11 , Criteria B,

* Dimensions: Dimensions: (L) 75 * (M) 55 * (H) 13mm

* Weight: 40g
