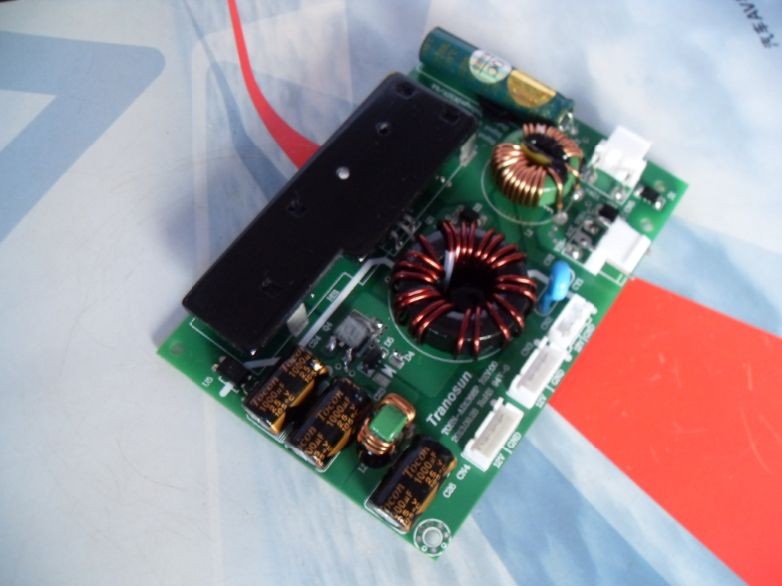

Products > DC/DC power supply > 9~36Vdc in - open frame > Power Module
Working voltage: DC9V-36V
Output voltage: 12V
Output Current: 4.0A (5.0A max)
* Working voltage: DC9V-36V
* Output voltage: 12V
* Output Current: 4.0A (5.0A max)
* Enter with ACC control (optional)
* with a delay of 15 seconds boot (open the power board output
* When the supply voltage Vin <9 ± 0.5V, the power supply board guarantees V-Out output delay of 15 seconds, Vin> 9V within 15 seconds, V-Out continues to maintain output; when Vin <9 ± 0.5V and remains greater than 15 seconds, the power strip automatically cut off the output,
* Supply voltage: 50V
* output over-voltage protection with over-current
* Super 8bit output with high-speed ADC sampling control output intelligent short circuit protection, short-circuit wire can automatically identify from 0-30 meters short circuit, automatic detection off
* The input has reverse polarity protection
* Output ripple: <100Mv
* Operating temperature: -20 ~ 60 ℃
* Relative humidity: 5 ~ 95% RH
* Safety standards: IEC60950 / IEC60065 / EN50498 / GB4943
* Electromagnetic compatibility standards:
EN55022 & EN55024 Class B
IEC-60068-2-1, IEC-60068-2-2, IEC-61000-4-5(ISO7637-2),Lever3,
IEC-61000-4-11 , Criteria B,
* Dimensions: (L) 108 * (M) 75 * (H) 13mm
* Weight: 120g
